Each battery rack has its dedicated battery management circuitry and can be safely used individually or in parallel (to increase capacity) as key storage element in a modern Energy Storage System.
When used properly these battery racks can provide decade long usable life.
Applications
- ‧ Industrial backup power systems.
- ‧ Uninterruptible Power Supply (UPS)
- ‧ Telecom, Data Center

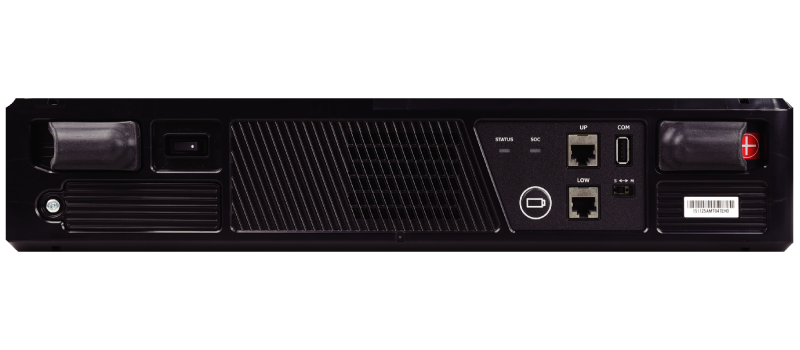

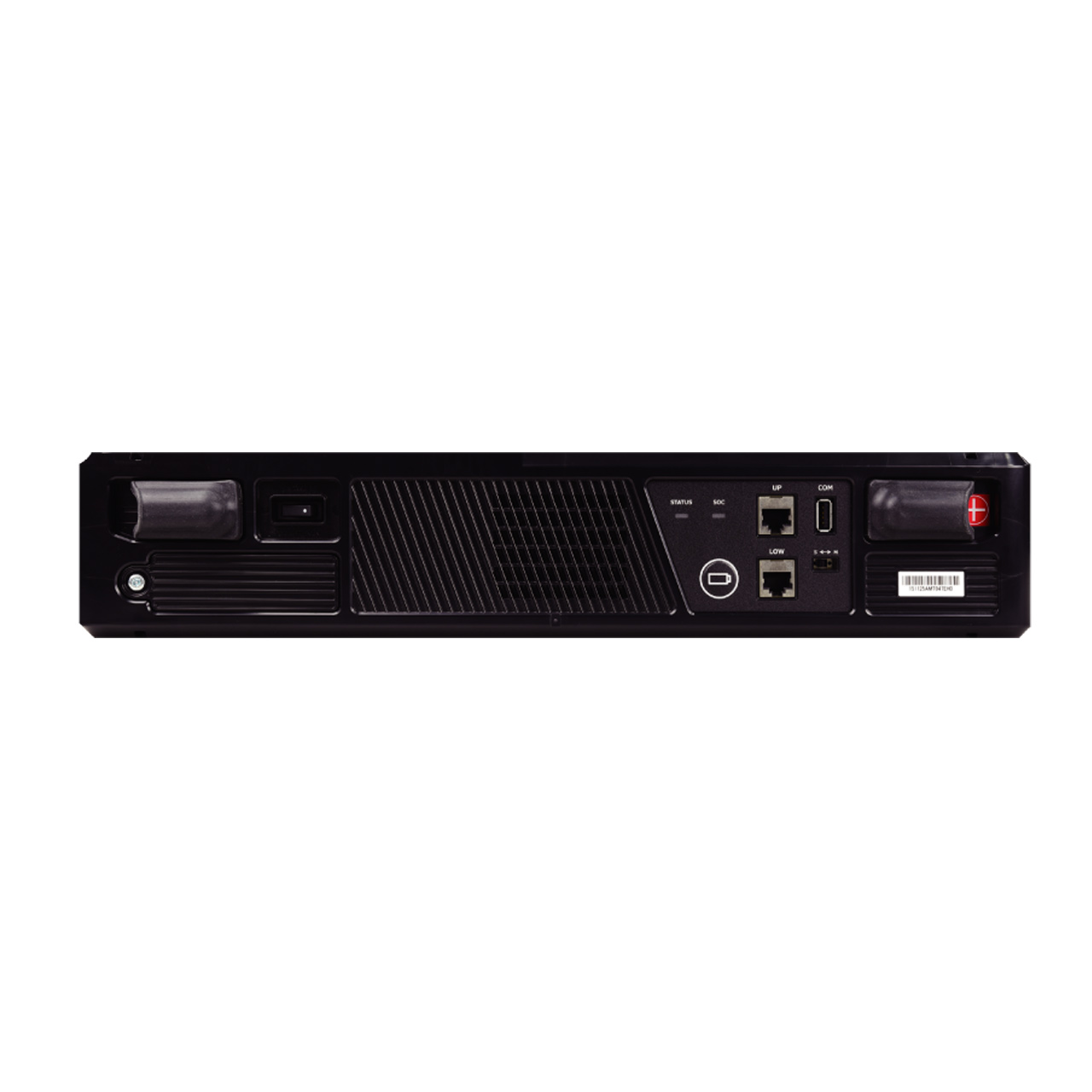

2U Li-Ion Battery Rack
1. Monitoring battery status simultaneously
2. Charge status detection
3. Module capacity calculation
4. Implement switch function
5. Certification
Cell: UL-1642 and UN38.3
Module: CE EN62040-2:2006 & UN38.3
Specifications
Model | BS4856FSP |
---|---|
Rated Energies | 2,654Wh |
Rated Voltage / Capacity | 46.8V / 56.7Ah |
Cell Type | Li-ion (2000 cycles from reputated world-leading cell manufacturer) |
Charging Voltage | 52.0V |
Maximum Charge Cut Off Voltage | 52.0V |
Minimum Discharge Cut Off Voltage | 39.0V |
Nominal Charging Current | 12A |
Maximum Charging Current | 24A |
Rated Discharge Current | 24A (Max. 35A in 10sec) |
Normal Operating Temperatures | Charging: 5-45℃; Discharging: -10-45℃ *Consult factory for operations beyond normal operating temperatures |
Balancing | Passive balance between cells and modules |
Battery protection | Over-charge, Over-discharge, Over Temperature, Under Temperature |
Communication bus | RS-485 |
Dimensions(Lx W x H) | 440.0 x 450.0 x 84.0 (2U rack) |
Weight | 25kg |
